Fully Automatic SiC Wafer Modification and Cutting Equipment LUSD3310
SiC wafer laser hidden cutting equipment, internal modification to form a crack layer, no tool loss, no frontal damage, suitable for the mass production of vehicle-grade SiC chips.
FARLEY·LASERLAB AUTO: Auto SiC Wafer Cutting Equipment
Fully Automatic SiC Wafer Modification and Cutting Equipment LUSD3310
SiC wafer laser hidden cutting equipment, internal modification to form a crack layer, no tool loss, no frontal damage, suitable for the mass production of vehicle-grade SiC chips.

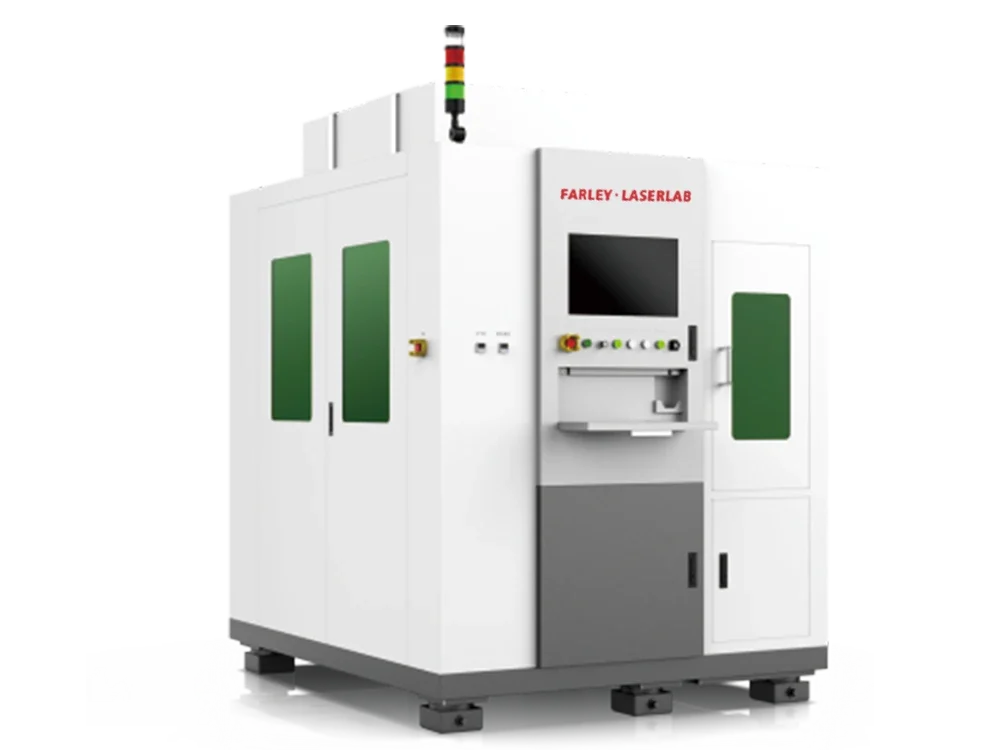

SiC Wafer Modification and Cutting Equipment LUSD3310
This LUSD3310 fully automatic equipment processes 6–8 inch SiC wafers via CCD vision positioning and ultrafast laser stealth dicing. With dynamic focus compensation, enclosed optical path and self-developed software, it delivers ≤±3μm precision, complies with SEMI standards, and supports customized processing for various wafers.
Features:
Auto CCD vision positioning
Dynamic focus compensation
SEMI industry compliant
Ultrafast laser stealth dicing
≤±3μm high precision
Customizable software modules
Fully Automatic SiC Wafer Modification and Cutting Equipment LUSD3310 – Technical Specifications
Through the self-developed dynamic focus compensation module, with the high-precision air flotation linear motion platform, high-precision and high-consistency wafer processing can be realized, and the processing quality reaches the leading level in the industry.
Configure the standard design of the implicit outer optical path black box, stable transmission of laser beam, stable output of laser energy, good processing stability
Independently develop cutting and vision software, provide customized functional modules, with a high degree of customization, meet the needs of the industry
| Project | Main technical parameters | |
|---|---|---|
| Main parameters | Equipment model | LUSD 3310 |
| Laser light source | Infrared | |
| loading and unloading method | Fully automatic, CST to CST | |
| Processing performance | Processing materials | 6/8inch SiC |
| Processing accuracy | ≤±3μm | |
| Processing speed | ≥500mm/s | |
SEMI Standard Certification
Certified by SEMI Semiconductor Industry Standards.
High-Precision Focus System
Integrated with high-precision Dynamic Focus Compensation System (DFT) and Autofocus System
Customizable Software Modules
Customizable vision and cutting software modules adaptable to various wafer types.
High Processing Precision & Compatibility
Achieves processing precision of ≤ ±3 microns, meeting advanced industry benchmarks; supports 6-8 inch wafers with dynamic focus compensation, autofocus, and auto-alignment to meet diverse processing needs.
Automated Wafer Handling & Inspection
Equipped with SEMI-standard automated wafer handling and inspection systems.
Samples Display
