It is suitable for PCBA production line. Offline/online design can be selected according to needs. Fully automatic laser cutting is carried out through the equipment high-precision control system and industrial vision system to realize the high-precision cutting

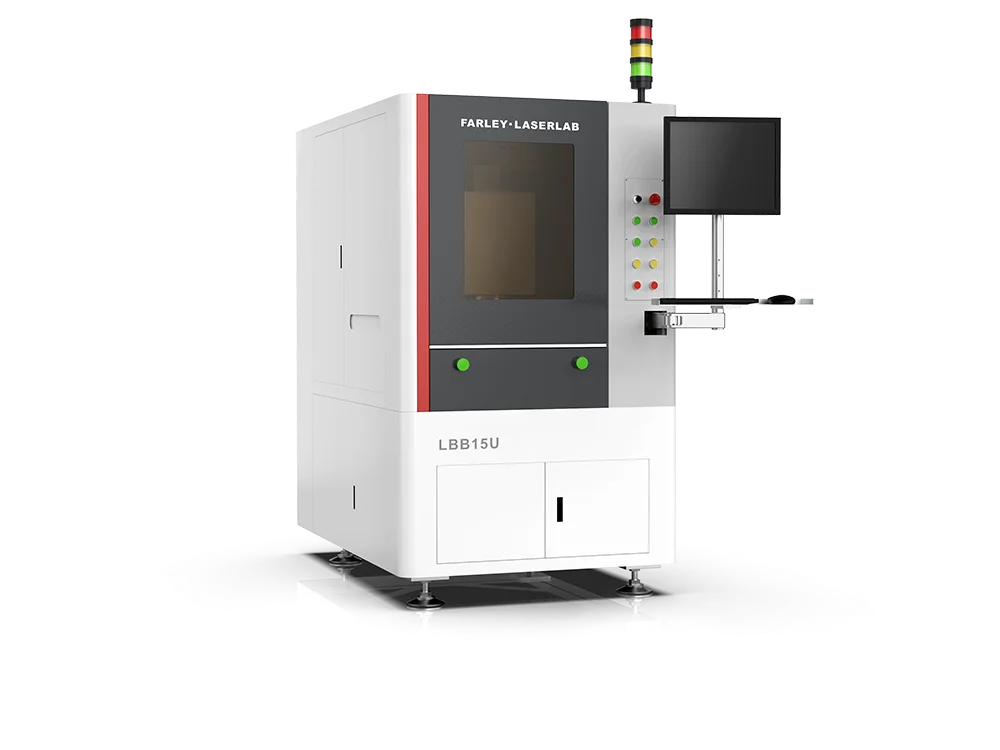

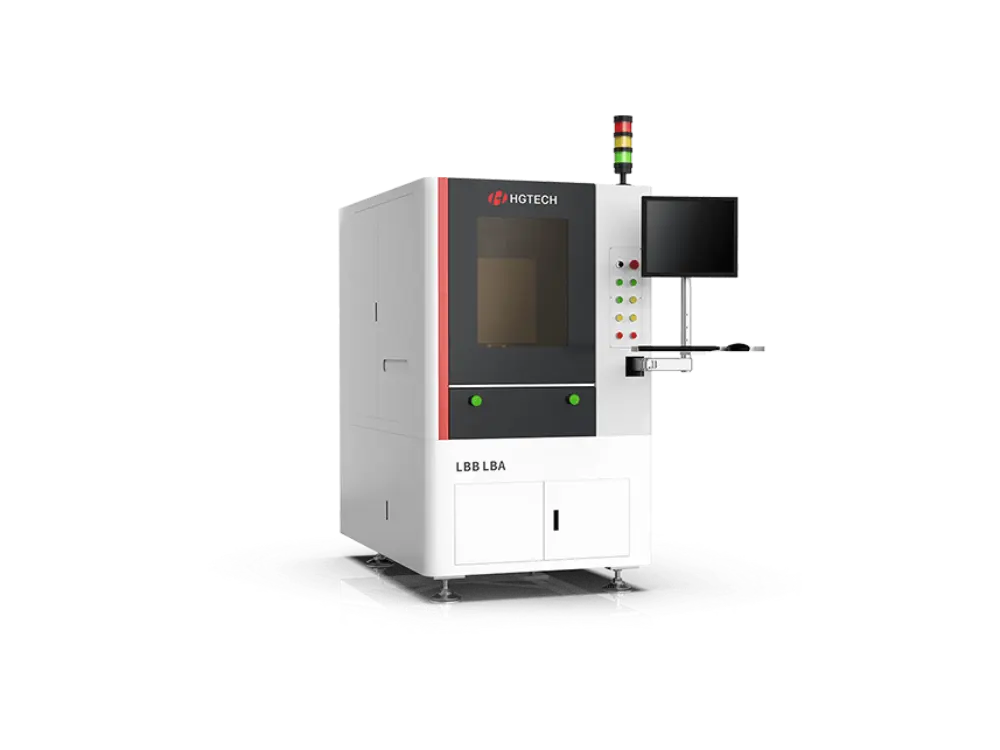

FARLEY·LASERLAB AUTO: Laser Depaneling Machine
SMT Laser Depaneling Series Machine
It is suitable for PCBA production line. Offline/online design can be selected according to needs. Fully automatic laser cutting is carried out through the equipment high-precision control system and industrial vision system to realize the high-precision cutting requirements of PCBA enterprises without dust and deformation.
Laser Depaneling Machine SMT Series
his PCBA laser cutter supports online/offline use. With industrial vision and high-precision control, it achieves dust-free, deformation-free cutting, featuring fine 10μm minimal line width, 25μm overall accuracy, marble structure and MES connectivity for SMT lines.
Features:
Online / offline optional for PCBA
Min 10μm fine processing line width
Marble structure for stable accuracy
Dust-free & deformation-free cutting
25μm high cutting precision
MES system data interconnection
SMT Laser Depaneling Machine – Technical Specifications
| Laser | Light source | Ultraviolet laser/green laser |
|---|---|---|
| Laser wavelength | 355nm/532nm | |
| Average power | 355nm:15w/20w/25w/30w 532nm:40w/50w/55w |
|
| Processing performance | Processing accuracy | ±25 um |
| Effective processing of the surface | 400*330mm*2 Or 400*330mm |
|
| Effective area of the lens | 50x50mm | |
| Support document format | DXF/GBR | |
| Power supply specifications | 220V/50Hz/2.5KVA | |
| Environmental conditions of use | Environmental requirements | Temperature 15-30℃, humidity <50% |
| The size of the whole machine | 1300mm*3400mm*1750mm |
High-Performance Laser & Precision Cutting
Adopts international first-class lasers with excellent beam quality, enabling high-quality cutting and fine processing with a minimum line width of 10μm (depending on material). The whole machine delivers a cutting accuracy of ±25μm with high stability (CPK>1.33).
Stable & Reliable Accuracy
The optical path system and work platform are made of marble, ensuring good processing flatness and long-term stable accuracy. A professional cutting visual control system accommodates material differences from different suppliers to achieve consistent batch quality control.
Flexible Production & Data Connectivity
Supports multiple processing modes (offline/online, single/double workstations) and can be seamlessly connected to the MES system to achieve full data interoperability.
Automated & Error-Free Workflow
The fully automated process includes loading, cutting, testing, sorting and unloading, effectively reducing manual operating errors and improving overall production stability.

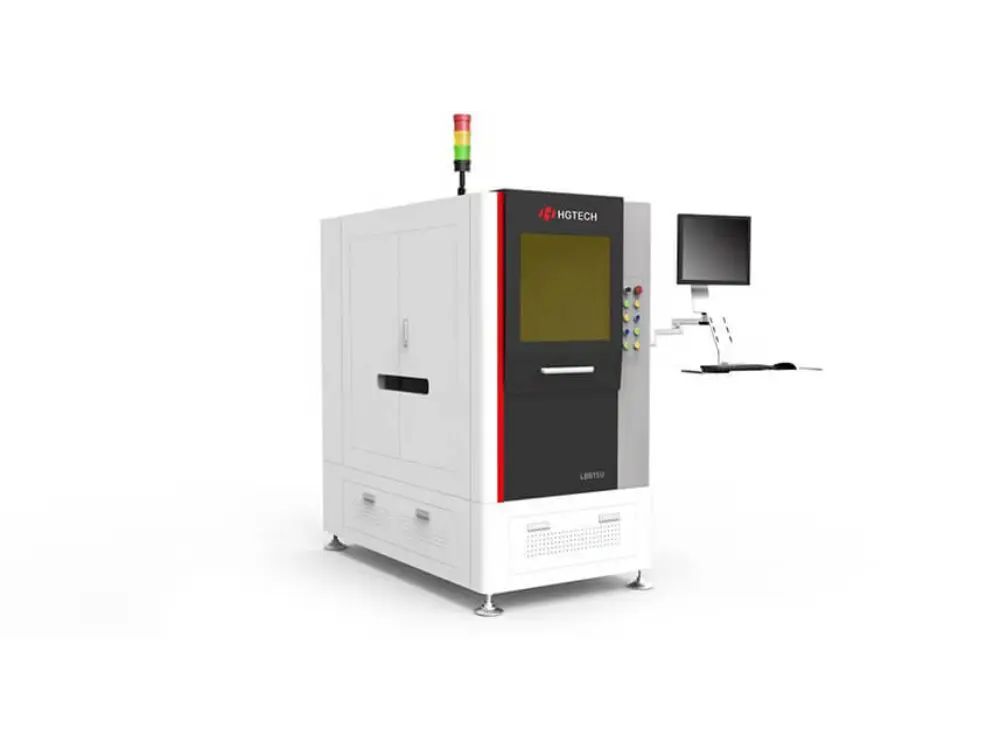

SMT Laser Depaneling Machine
Equipment characteristics
- Possess industry standard Bad Mark function, which can realize bad board skip or X board marking
- There are multiple processing methods such as single head/double head and double track for flexible selection
- Can be connected to MES system to realizedata intercommunication and data anti-duplication functions
- The automatic track width adjustment function easily adapts to the processingrequirements of various format products
- The equipment has a compact structure, small size, and easy to be embedded invarious SMT production lines.
Samples Display
