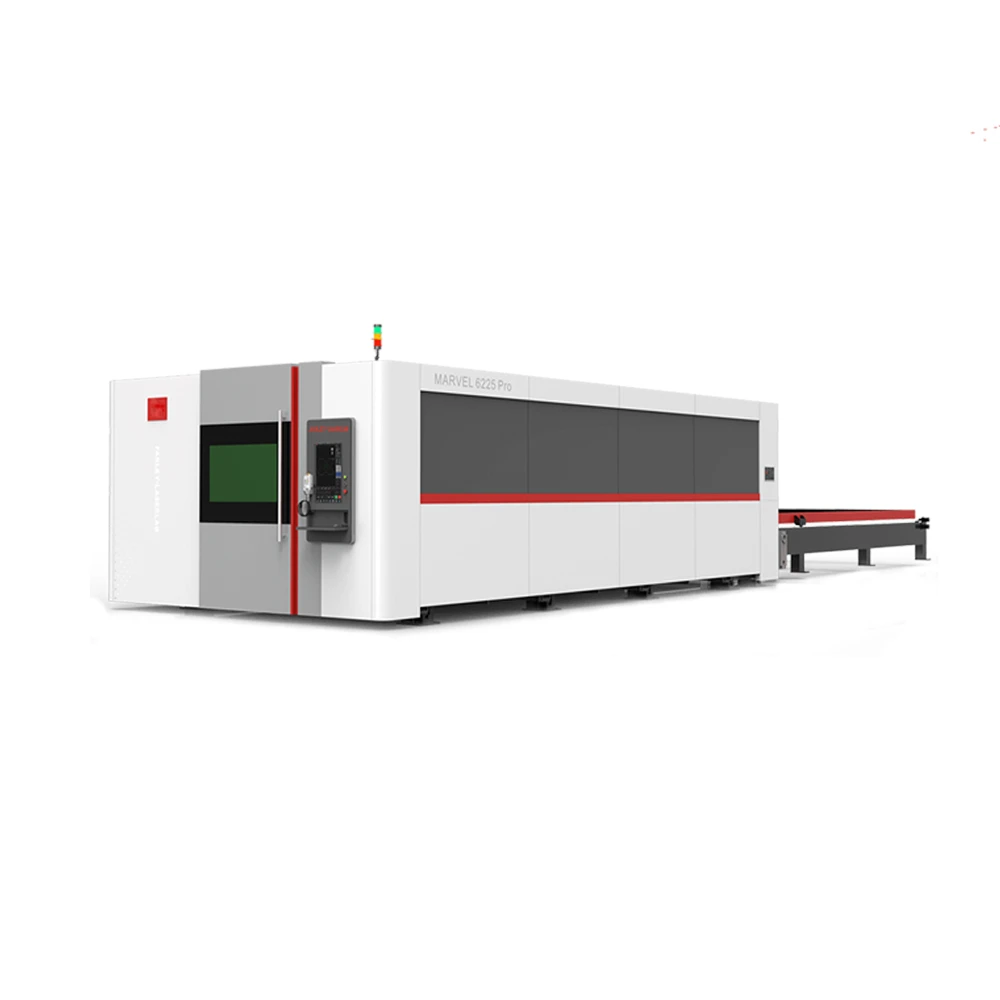

MARVEL PRO Series Parallel Exchange Fiber Laser Cutter
MARVEL PRO Series cutting machine is the preferred model for the metal material processing industry, with strong cutting capabilities.
FARLEY·LASERLAB AUTO: Marvel Pro Laser Cutting Machine
Parallel Exchange Fiber Laser Cutting Machine MARVEL PRO Series
Help growing customers to solve the problems of ROI and high equipment maintenance cost.
- Meet 100% metal material processing needs
- Reduce procurement costs and reduce maintenance costs
- One of the mainstream purchase models for market renewal
High Power Fiber Laser Cutting Machine – Marvel Pro Series
This series cutting machine is the preferred model for the metal material processing industry, with strong cutting capabilities.
General cutting speed, ultra-high stability, high-quality processing, extremely low operating costs, and ultra-high adaptability.
Features:
UHP / 12000-30000W
Max. Positioning Linkage Speed 168m/min
Safe and Environmental Friendly
Remote Diagnosis / Intelligent Anti-Collision
Marvel Pro Series Laser Cutting System – Technical Specifications
Combining industrial internet, information system platforms and operation system management, intelligent technology and equipment integration systems; significantly improving production stability, enabling rigid production, covering numerous applications and services; achieving superior operation from single-machine intelligence to production line automation and factory intelligence.
| MODEL | MARVEL Pro 3015 | MARVEL Pro 4022 | MARVEL Pro 6255 | MARVEL Pro 8255 | MARVEL Pro 10025 | MARVEL Pro 12025 | |
| Processing area (mm) | X | 3100 | 4100 | 6100 | 8100 | 10080 | 12100 |
| Y | 1 530 | 2225 | 2570 | 2570 | 2570 | 2570 | |
| Z | 350 | 350 | 365 | 365 | 365 | 365 | |
| Max. positioning llinkage speed (m/min) | 169 | 169 | 169 | 169 | 169 | 169 | |
| Acceleration | 3.0G | 3.0G | 3.0G | 3.0G | 3.0G | 3.0G | |
| Positioning accuracy Pa*(mm) |
0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
| Repeated positioning accuracy Ps*(mm) |
0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | |
| Laser power | 30000W | ||||||
Excellent Processing Performance
Hydraulic exchange worktable, integral cast
aluminum beam, high dynamic performance and
high operating speed.
Unique hollow bed frame, energy saving and consumption reduction.
Online maintenance diagnosisimprovesefficiency,reduces costs, and ensures yourefficient production.
Intelligent worktable & high efficiency and stability
Synchronous exchange improves work efficiency; high-strength steel welding and double-sided chain drive ensure stability and speed; modular screwless toothed grid structure enables quick tooth plate replacement, and synchronous positioning and clamping of the front and rear worktables ensures cutting stability.
